Low Power Solar 4G LTE Modem Router, Outdoor Wireless Router with SIM Card Slot |C&E-L8|

Descriptions:

L8 is a low-power solar router products. The router uses a 4G routing terminal device equipped with a 4G wireless communication module on the ASR platform. It is stable, has a long life, and has strong anti-interference capabilities. The product supports power display, RJ45 network port (function optional), supports 2.4 G WIFI, and L8 supports WIFI access for up to 8 devices. L8P is an enhanced version of L8. It uses MTK7628 as the main chip, has a stronger WIFI signal, and still has a good WIFI signal 150 meters away. It supports WIFI access for up to 15 devices.

Features:

• High Efficiency Mono Silicon Panels: Equipped with imbricated single crystal photovoltaic cells for superior energy conversion efficiency (22% ~ 24%).

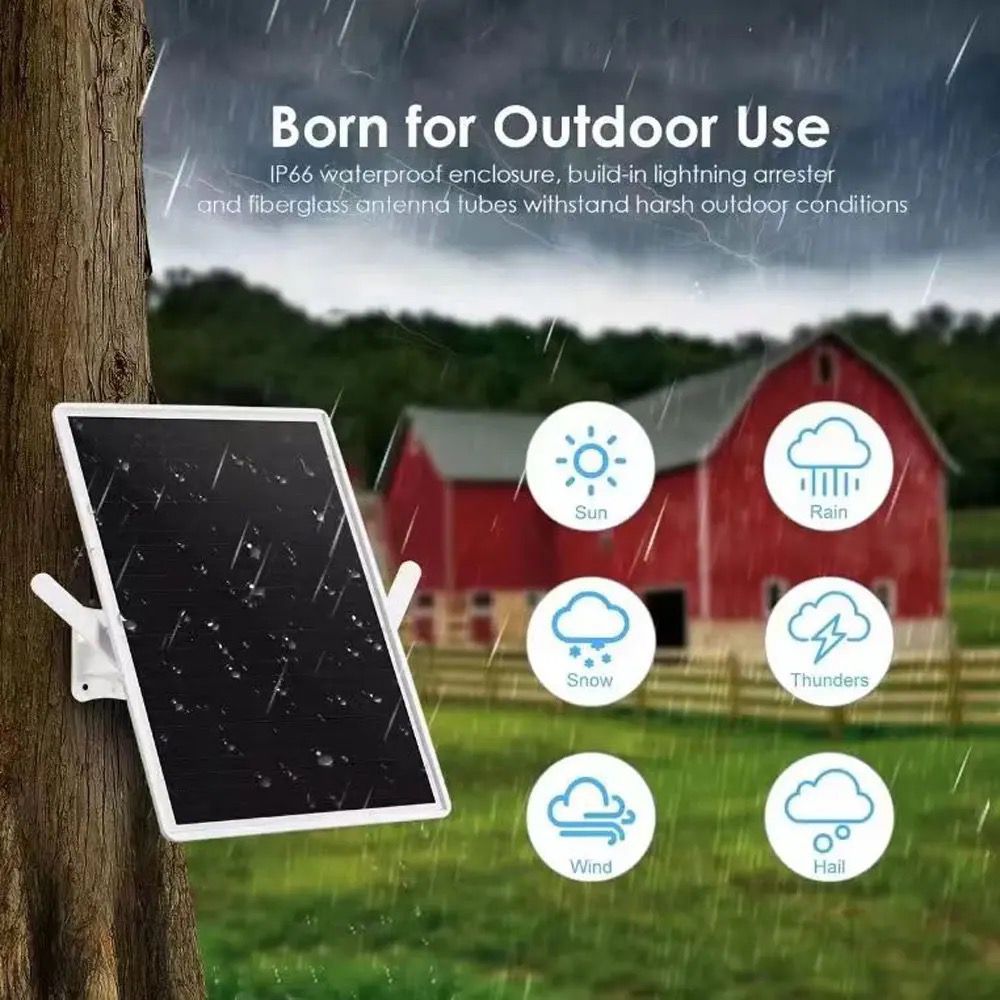

• IP65 Waterproof Rating: Designed to withstand harsh outdoor conditions, ensuring durability and reliable performance.

• Fast Solar Energy Absorption: Efficiently captures and converts solar energy, enabling sustained operation even in variable light conditions.

• Simple to Set Up: User-friendly installation process with minimal setup required.

• High Conversion Efficiency: Maximizes power output with advanced solar panel technology.

• Easy Installation: Quick and straightforward installation for immediate use.

• Eco-Friendly Material: Made with environmentally conscious materials to reduce ecological impact.

• WiFi Support: Supports 2.4 GHz WiFi, accommodating multiple devices (up to 8 for L8 and up to 15 for L8P).

Product Parameters:

• Photovoltaic panels: 1 Photovoltaic cells: imbricated single crystals; 2 Power: 15W/5V; 3 Open circuit voltage 7.1 V; 4 Size: 310*223mm; 5 Conversion efficiency: 22% ~ 24%.

• WiFi protocol: 802.11 n/g/b.

• Network type: TDD-LTE, FDD-LTE, WCDMA.

• Supported network frequency bands:

  • U-L8: LTE B1/B2/B3/B4/B5/B7/B8/B28/B12/B17/B66/B38/B40/B41; WCDMA B1/B2/B4/B8

  • C&E-L8: LTE B1/B3/B5/B7/B8/B20/B28/B38/B40/41; WCDMA B1/B5/B8

  • A-L8: LTE B1/B3/B5/B8/B34/B38/B39/B40/B41; WCDMA B1/B5/B8

• LTE rate: FDD-LTE 150M DL/50M UL Cat4; TDD-LTE 130M DL/35M UL Cat4

• SIM card slot: Support Micro SIM card

• Network port: Support one-route RJ45 network port (the default factory equipment does not have a network port

• USB port: Support one-route Type-C input interface

• RESET: Support factory RESET key

• Dialing mode: RNDIS; (L8P supports RNDIS/GobiNet

• Operating system: Windows series/Linux/Android and other embedded operating systems

• Working temperature:-20°C-80°C

• L8 power supply: 5V 1A; Standby power consumption: 1W

• Web background: Support web background management
